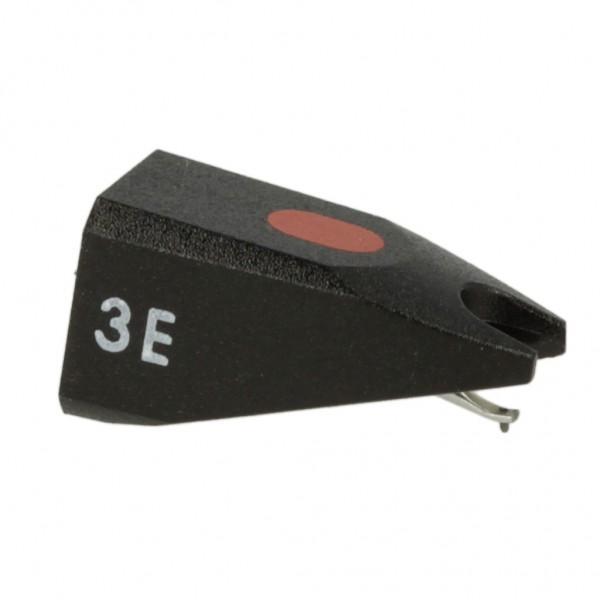

Ortofon STYLUS 3 E

Ortofon STYLUS 3 E

Frequency range – 20-20.000 Hz
Frequency response – 20-18.000 Hz + 2 / – 3 dB
Tracking ability at 315Hz at recommended tracking force *) – 60 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 µm
Equivalent stylus tip mass – 0,5 mg
*) Typical value

Tracking force range – 1,5-2,0 g (15-20 mN)
Tracking force, recommended – 1,75 g (17,5 mN)
Tracking angle – 20°
Stylus colour – Black
